| 型号 PART NO. | 最大反向峰值电压 Max.Reverse Voltage | 最大正向电流 Max.Aver. Rect.Current | 最大正向浪涌电流 Peak Fwd. Surge Current | 最大正向压降 Max.Fwd.Voltage @25℃&Rated lo | 最大反向漏电 流Maximum Reverse Current@Rated VRM&Tc | 典型热阻 Typical Thermal Resistance | 结电容 Typical junction capacitance | 工作结温Operation Temp.Range | 封装 Package | ||
| VRM (V) | lo(A) | IFSM(A) | Rated lo(A) | VF(V) | @25℃IR(uA) | @125℃IR(mA) | RθJA(℃/W) | CJ（PF) | Tj（℃） | ||

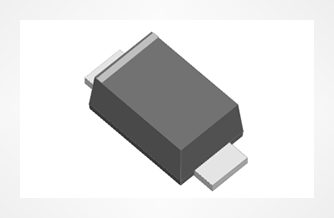

| S12Q | 20 | 1.0 | 40 | 1.0 | 0.5 | 200 | 20 | 85 | 95 | -55～+150 | SOD-123FL |
| S13Q | 30 | 1.0 | 40 | 1.0 | 0.5 | 200 | 20 | 85 | 95 | -55～+150 | SOD-123FL |
| S14Q | 40 | 1.0 | 40 | 1.0 | 0.5 | 200 | 20 | 85 | 95 | -55～+150 | SOD-123FL |
| S16Q | 60 | 1.0 | 40 | 1.0 | 0.7 | 50 | 10 | 85 | 75 | -55～+150 | SOD-123FL |
| S18Q | 80 | 1.0 | 40 | 1.0 | 0.77 | 1 | 0.5 | 85 | 50 | -55～+175 | SOD-123FL |
| S110Q | 100 | 1.0 | 40 | 1.0 | 0.77 | 1 | 0.5 | 85 | 50 | -55～+175 | SOD-123FL |
| S115Q | 150 | 1.0 | 40 | 1.0 | 0.9 | 1 | 1 | 85 | 30 | -55～+175 | SOD-123FL |
| S120Q | 200 | 1.0 | 40 | 1.0 | 0.9 | 1 | 1 | 85 | 30 | -55～+175 | SOD-123FL |
| S22Q | 20 | 2.0 | 50 | 2.0 | 0.55 | 200 | 8 | 85 | 115 | -55～+150 | SOD-123FL |
| S23Q | 30 | 2.0 | 50 | 2.0 | 0.55 | 200 | 8 | 85 | 115 | -55～+150 | SOD-123FL |
| S24Q | 40 | 2.0 | 50 | 2.0 | 0.55 | 200 | 8 | 85 | 115 | -55～+150 | SOD-123FL |
| S26Q | 60 | 2.0 | 50 | 2.0 | 0.7 | 100 | 10 | 85 | 95 | -55～+150 | SOD-123FL |
| S28Q | 80 | 2.0 | 50 | 2.0 | 0.8 | 1 | 0.15 | 85 | 60 | -55～+175 | SOD-123FL |
| S210Q | 100 | 2.0 | 50 | 2.0 | 0.8 | 1 | 0.15 | 85 | 60 | -55～+175 | SOD-123FL |
| S215Q | 150 | 2.0 | 50 | 2.0 | 0.9 | 5 | 0.15 | 85 | 40 | -55～+175 | SOD-123FL |
| S220Q | 200 | 2.0 | 50 | 2.0 | 0.9 | 5 | 0.15 | 85 | 40 | -55～+175 | SOD-123FL |
| SS12AQ | 20 | 1.0 | 40 | 1.0 | 0.5 | 200 | 20 | 65 | 95 | -55～+150 | SMA |
| SS13AQ | 30 | 1.0 | 40 | 1.0 | 0.5 | 200 | 20 | 65 | 95 | -55～+150 | SMA |
| SS14AQ | 40 | 1.0 | 40 | 1.0 | 0.5 | 200 | 20 | 65 | 95 | -55～+150 | SMA |
| SS15AQ | 50 | 1.0 | 40 | 1.0 | 0.7 | 50 | 10 | 65 | 75 | -55～+150 | SMA |
| SS16AQ | 60 | 1.0 | 40 | 1.0 | 0.7 | 50 | 10 | 65 | 75 | -55～+150 | SMA |
| SS18AQ | 80 | 1.0 | 40 | 1.0 | 0.77 | 1 | 0.5 | 65 | 50 | -55～+175 | SMA |
| SS110AQ | 100 | 1.0 | 40 | 1.0 | 0.77 | 1 | 0.5 | 65 | 50 | -55～+175 | SMA |
| SS115AQ | 150 | 1.0 | 40 | 1.0 | 0.9 | 1 | 1 | 65 | 30 | -55～+175 | SMA |
| SS120AQ | 200 | 1.0 | 40 | 1.0 | 0.9 | 1 | 1 | 65 | 30 | -55～+175 | SMA |
| SS22AQ | 20 | 2.0 | 75 | 2.0 | 0.55 | 200 | 8 | 75 | 115 | -55～+150 | SMA |
| SS23AQ | 30 | 2.0 | 75 | 2.0 | 0.55 | 200 | 8 | 75 | 115 | -55～+150 | SMA |
| SS24AQ | 40 | 2.0 | 75 | 2.0 | 0.55 | 200 | 8 | 75 | 115 | -55～+150 | SMA |
| SS26AQ | 60 | 2.0 | 75 | 2.0 | 0.7 | 100 | 10 | 75 | 95 | -55～+150 | SMA |
| SS28AQ | 80 | 2.0 | 75 | 2.0 | 0.8 | 1 | 0.15 | 75 | 60 | -55～+175 | SMA |
| SS210AQ | 100 | 2.0 | 75 | 2.0 | 0.8 | 1 | 0.15 | 75 | 60 | -55～+175 | SMA |
| SS215AQ | 150 | 2.0 | 75 | 2.0 | 0.9 | 5 | 0.15 | 75 | 40 | -55～+175 | SMA |
| SS220AQ | 200 | 2.0 | 75 | 2.0 | 0.9 | 5 | 0.15 | 75 | 40 | -55～+175 | SMA |
| SS32AQ | 20 | 3.0 | 80 | 3.0 | 0.5 | 100 | 30 | 55 | 150 | -55～+150 | SMA |
| SS33AQ | 30 | 3.0 | 80 | 3.0 | 0.5 | 100 | 30 | 55 | 150 | -55～+150 | SMA |
| SS34AQ | 40 | 3.0 | 80 | 3.0 | 0.5 | 100 | 30 | 55 | 150 | -55～+150 | SMA |
| SS36AQ | 60 | 3.0 | 80 | 3.0 | 0.7 | 100 | 10 | 55 | 135 | -55～+150 | SMA |
| SS38AQ | 80 | 3.0 | 80 | 3.0 | 0.8 | 1 | 0.15 | 55 | 95 | -55～+175 | SMA |
| SS310AQ | 100 | 3.0 | 80 | 3.0 | 0.8 | 1 | 0.15 | 55 | 95 | -55～+175 | SMA |
| SS315AQ | 150 | 3.0 | 80 | 3.0 | 0.9 | 1 | 0.15 | 55 | 60 | -55～+175 | SMA |
| SS320AQ | 200 | 3.0 | 80 | 3.0 | 0.9 | 1 | 0.15 | 55 | 60 | -55～+175 | SMA |
| SS52AQ | 20 | 5.0 | 120 | 5.0 | 0.6 | 100 | 20 | 60 | 265 | -55～+150 | SMA |
| SS53AQ | 30 | 5.0 | 120 | 5.0 | 0.6 | 100 | 20 | 60 | 265 | -55～+150 | SMA |
| SS54AQ | 40 | 5.0 | 120 | 5.0 | 0.6 | 100 | 20 | 60 | 265 | -55～+150 | SMA |
| SS56AQ | 60 | 5.0 | 120 | 5.0 | 0.7 | 100 | 20 | 60 | 215 | -55～+150 | SMA |
| SS58AQ | 80 | 5.0 | 120 | 5.0 | 0.8 | 10 | 0.2 | 60 | 150 | -55～+175 | SMA |
| SS510AQ | 100 | 5.0 | 120 | 5.0 | 0.8 | 10 | 0.2 | 60 | 150 | -55～+175 | SMA |
| SS515AQ | 150 | 5.0 | 100 | 5.0 | 0.9 | 1 | 0.15 | 60 | 100 | -55～+175 | SMA |
| SS520AQ | 200 | 5.0 | 100 | 5.0 | 0.9 | 1 | 0.15 | 60 | 100 | -55～+175 | SMA |
| SS22Q | 20 | 2.0 | 75 | 2.0 | 0.55 | 200 | 8 | 75 | 115 | -55～+150 | SMB |
| SS23Q | 30 | 2.0 | 75 | 2.0 | 0.55 | 200 | 8 | 75 | 115 | -55～+150 | SMB |
| SS24Q | 40 | 2.0 | 75 | 2.0 | 0.55 | 200 | 8 | 75 | 115 | -55～+150 | SMB |
| SS26Q | 60 | 2.0 | 75 | 2.0 | 0.7 | 100 | 10 | 75 | 95 | -55～+150 | SMB |
| SS28Q | 80 | 2.0 | 75 | 2.0 | 0.8 | 1 | 0.15 | 75 | 60 | -55～+175 | SMB |
| SS210Q | 100 | 2.0 | 75 | 2.0 | 0.8 | 1 | 0.15 | 75 | 60 | -55～+175 | SMB |
| SS215Q | 150 | 2.0 | 75 | 2.0 | 0.9 | 5 | 0.15 | 75 | 40 | -55～+175 | SMB |
| SS220Q | 200 | 2.0 | 75 | 2.0 | 0.9 | 5 | 0.15 | 75 | 40 | -55～+175 | SMB |
| SS32BQ | 20 | 3.0 | 80 | 3.0 | 0.5 | 100 | 30 | 63 | 150 | -55～+150 | SMB |
| SS33BQ | 30 | 3.0 | 80 | 3.0 | 0.5 | 100 | 30 | 63 | 150 | -55～+150 | SMB |
| SS34BQ | 40 | 3.0 | 80 | 3.0 | 0.5 | 100 | 30 | 63 | 150 | -55～+150 | SMB |
| SS36BQ | 60 | 3.0 | 80 | 3.0 | 0.7 | 100 | 10 | 63 | 135 | -55～+150 | SMB |
| SS38BQ | 80 | 3.0 | 80 | 3.0 | 0.8 | 1 | 0.15 | 63 | 95 | -55～+175 | SMB |
| SS310BQ | 100 | 3.0 | 80 | 3.0 | 0.8 | 1 | 0.15 | 63 | 95 | -55～+175 | SMB |
| SS315BQ | 150 | 3.0 | 80 | 3.0 | 0.9 | 1 | 0.15 | 63 | 60 | -55～+175 | SMB |
| SS320BQ | 200 | 3.0 | 80 | 3.0 | 0.9 | 1 | 0.15 | 63 | 60 | -55～+175 | SMB |
| SS52BQ | 20 | 5.0 | 120 | 5.0 | 0.6 | 100 | 20 | 63 | 265 | -55～+150 | SMB |
| SS53BQ | 30 | 5.0 | 120 | 5.0 | 0.6 | 100 | 20 | 63 | 265 | -55～+150 | SMB |
| SS54BQ | 40 | 5.0 | 120 | 5.0 | 0.6 | 100 | 20 | 63 | 265 | -55～+150 | SMB |
| SS56BQ | 60 | 5.0 | 120 | 5.0 | 0.7 | 100 | 20 | 63 | 215 | -55～+150 | SMB |
| SS58BQ | 80 | 5.0 | 120 | 5.0 | 0.8 | 10 | 0.2 | 63 | 150 | -55～+175 | SMB |
| SS510BQ | 100 | 5.0 | 120 | 5.0 | 0.8 | 10 | 0.2 | 63 | 150 | -55～+175 | SMB |
| SS515BQ | 150 | 5.0 | 120 | 5.0 | 0.9 | 1 | 0.15 | 63 | 100 | -55～+175 | SMB |
| SS520BQ | 200 | 5.0 | 120 | 5.0 | 0.9 | 1 | 0.15 | 63 | 100 | -55～+175 | SMB |
| SS32Q | 20 | 3.0 | 80 | 3.0 | 0.5 | 100 | 30 | 48 | 150 | -55～+150 | SMC |
| SS34Q | 40 | 3.0 | 80 | 3.0 | 0.5 | 100 | 30 | 48 | 150 | -55～+150 | SMC |
| SS36Q | 60 | 3.0 | 80 | 3.0 | 0.7 | 100 | 10 | 48 | 135 | -55～+150 | SMC |
| SS310Q | 100 | 3.0 | 80 | 3.0 | 0.8 | 1 | 0.15 | 48 | 95 | -55～+175 | SMC |
| SS315Q | 150 | 3.0 | 80 | 3.0 | 0.9 | 1 | 0.15 | 48 | 60 | -55～+175 | SMC |
| SS320Q | 200 | 3.0 | 80 | 3.0 | 0.9 | 1 | 0.15 | 48 | 60 | -55～+175 | SMC |
| SS52Q | 20 | 5.0 | 120 | 5.0 | 0.6 | 100 | 20 | 47 | 265 | -55～+150 | SMC |
| SS53Q | 30 | 5.0 | 120 | 5.0 | 0.6 | 100 | 20 | 47 | 265 | -55～+150 | SMC |
| SS54Q | 40 | 5.0 | 120 | 5.0 | 0.6 | 100 | 20 | 47 | 265 | -55～+150 | SMC |
| SS56Q | 60 | 5.0 | 120 | 5.0 | 0.7 | 100 | 20 | 47 | 215 | -55～+150 | SMC |
| SS58Q | 80 | 5.0 | 120 | 5.0 | 0.8 | 10 | 0.2 | 47 | 150 | -55～+175 | SMC |
| SS510Q | 100 | 5.0 | 120 | 5.0 | 0.8 | 10 | 0.2 | 47 | 150 | -55～+175 | SMC |
| SS515Q | 150 | 5.0 | 120 | 5.0 | 0.9 | 1 | 0.15 | 47 | 100 | -55～+175 | SMC |
| SS520Q | 200 | 5.0 | 120 | 5.0 | 0.9 | 1 | 0.15 | 47 | 100 | -55～+175 | SMC |
| SS82Q | 20 | 8.0 | 150 | 8.0 | 0.55 | 100 | 30 | 45 | 480 | -55～+150 | SMC |
| SS84Q | 40 | 8.0 | 150 | 8.0 | 0.55 | 100 | 30 | 45 | 480 | -55～+150 | SMC |
| SS86Q | 60 | 8.0 | 150 | 8.0 | 0.7 | 100 | 20 | 45 | 330 | -55～+150 | SMC |
| SS810Q | 100 | 8.0 | 150 | 8.0 | 0.85 | 10 | 0.2 | 45 | 270 | -55～+175 | SMC |
| SS820Q | 200 | 8.0 | 150 | 8.0 | 0.9 | 10 | 0.2 | 45 | 165 | -55～+175 | SMC |
| SS5U50PAQ | 50 | 5.0 | 200 | 5.0 | 0.64 | 150 | 20 | - | - | -55～+150 | TO-277 |
| SS5U60PAQ | 60 | 5.0 | 200 | 5.0 | 0.64 | 150 | 20 | - | - | -55～+150 | TO-277 |
| SS5U100PAQ | 100 | 5.0 | 200 | 5.0 | 0.8 | 100 | 3 | 60 | 270 | -55～+150 | TO-277 |
| SS10U100PQ | 100 | 10 | 200 | 10 | 0.85 | 10 | 3 | 65 | 270 | -55～+175 | TO-277 |
| SS10U200PQ | 200 | 10 | 200 | 10 | 0.95 | 1 | 5 | 60 | 160 | -55～+175 | TO-277 |
| SS15U45PQ | 45 | 15 | 300 | 15 | 0.8 | 100 | 50 | - | 700 | -55～+150 | TO-277 |
| SS15U60PQ | 60 | 15 | 300 | 15 | 0.8 | 100 | 50 | - | 490 | -55～+150 | TO-277 |
